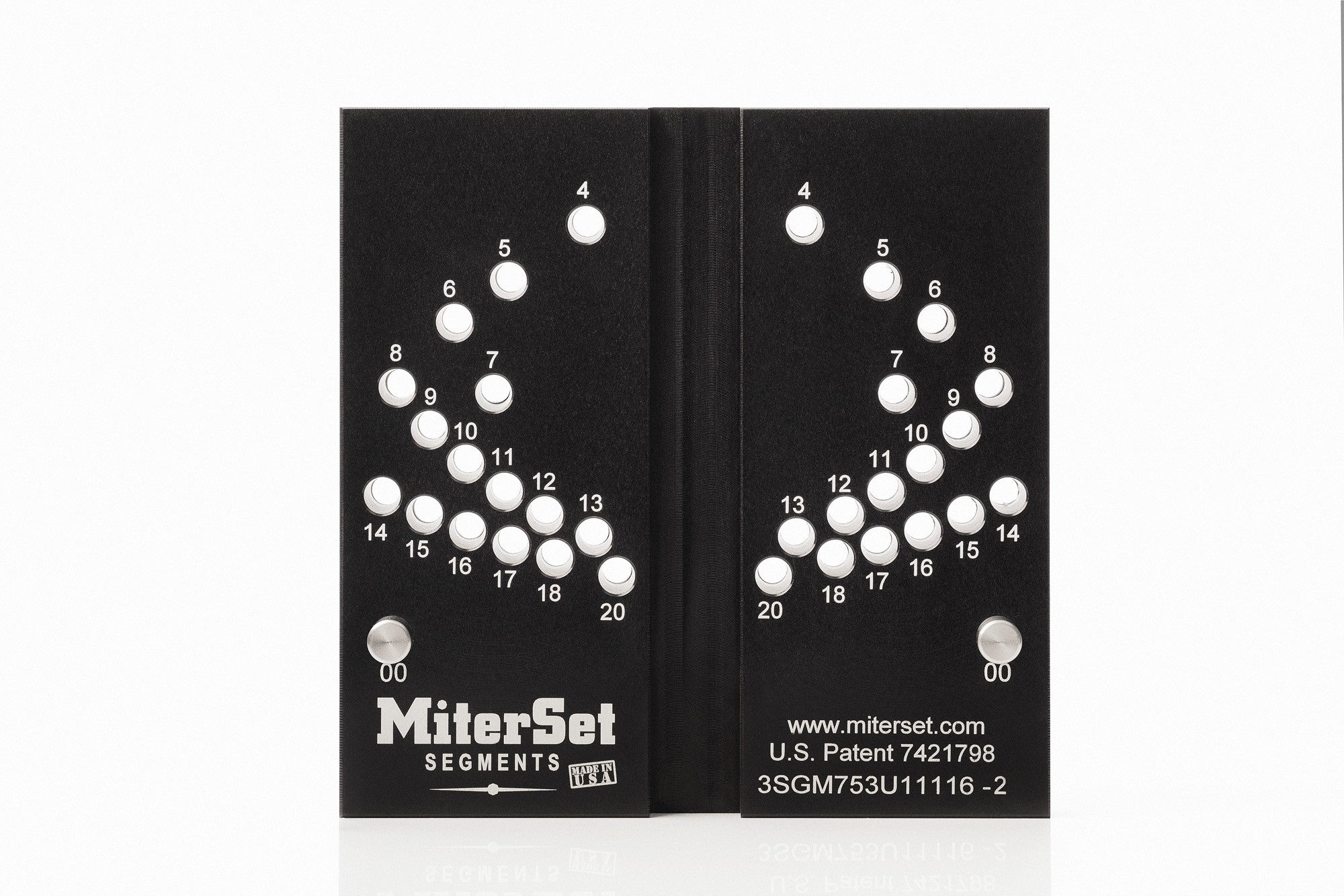

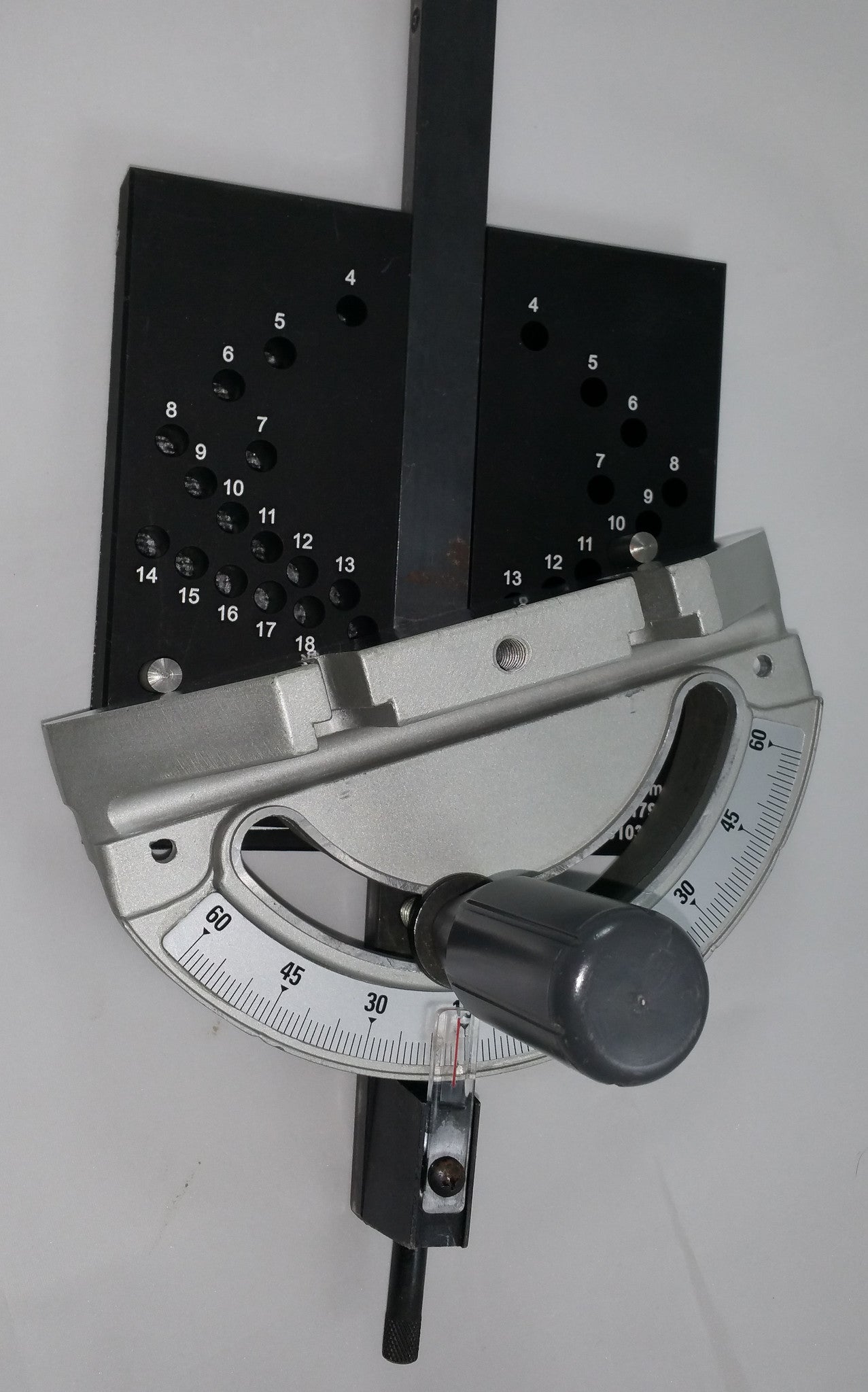

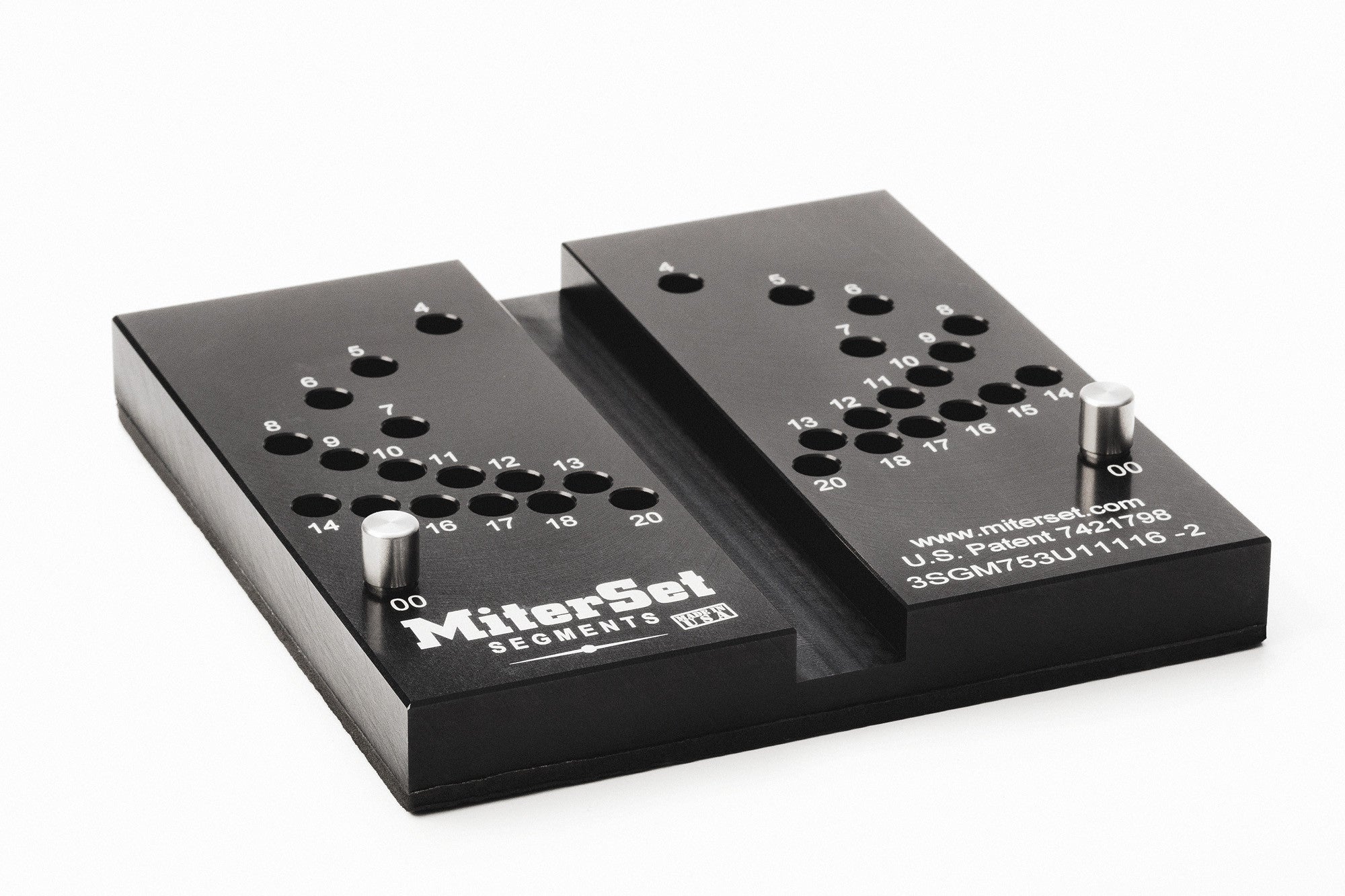

MiterSet Segments consists of a laser-etched, anodized aluminum plate bisected by a miter gauge slot. It has hole patterns for left and right angles which are set using two tapered pins. The numbers on both the left and right plate sectors represents the number of segments that you wish to cut for your wood project. Slide your miter gauge into the miter slot. Place one pin at the zero position and the other pin in the hole next to the number of segments you wish to cut. Slide your miter gauge up to the pins and lock it down. The precise angle is automatically transferred to your miter gauge.
This product fits all standard miter slots measuring .75" wide.
All components are proudly Made in the USA.
Segment Angle Chart:
MiterSet is meant to be used with standard miter gauges that require a .75" miter slot. MiterSet may not work (with out adjustments) with some of the large precision gauges from Incra and Kreg.
MiterSet also is not compatible with table saws that have an inverted T-shape miter gauge bar (e.g., the Dewalt 745 and 748 contractor table saws) because the inverted T-shape miter gauge bar will not fit snugly in the miter slot in the plates. In order to use MiterSet with table saws that have such miter gauges, you must get an off-the-shelf miter gauge for your saw that has a flat bottom miter gauge bar.
This MiterSet jig is not configured to support Shopsmith. You can purchase the Shopsmith version of MiterSet directly at www.shopsmith.com.
* MiterSet Segments has no number or angle setting for 19 segments.
